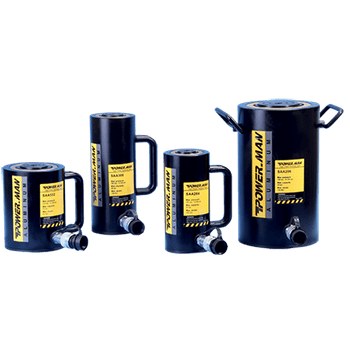

SAA Series
Single-Acting Aluminium Cylinders
- Single - Acting Cylinder with retractor spring
- Light weight and easily portable
- Handle are included on all models
- Heavy duty heat treated steel spring has improved retraction of the plunger
- Suitable for use in all positions
- Wear resistant coating extends cylinder life
- Steel base plate and saddle prevents load induced damage
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| SAA-202 | 20 | 50 | 175 | 4.1 |
| SAA-204 | 20 | 100 | 225 | 5.5 |
| SAA-206 | 20 | 150 | 275 | 6.4 |
| SAA-302 | 30 | 50 | 183 | 5.7 |
| SAA-304 | 30 | 100 | 233 | 6.2 |
| SAA-306 | 30 | 150 | 283 | 7.5 |
| SAA-502 | 50 | 50 | 187 | 8.4 |
| SAA-504 | 50 | 100 | 237 | 10 |
| SAA-506 | 50 | 150 | 287 | 12.3 |
| SAA-1002 | 100 | 50 | 270 | 20 |
| SAA-1004 | 100 | 100 | 320 | 22.1 |
| SAA-1006 | 100 | 150 | 370 | 25.5 |
